All Preconfigured Cameras & NVRs

Preconfigured TRENDnet TV-IP310PI: Ultra HD 3MP Wired PoE Network Camera

TRENDnet TV-IP310PI is a great IP66 waterproof outdoor network camera capable of uploading image snapshots of up to 3MP to the cloud. The image quality is excellent. With up to 100-ft night vision, it is ideal for monitoring large outdoor scenes such as construction sites, warehouses, etc. A preconfigured PoE outdoor camera solution usually includes the following components:

  • One or more outdoor PoE network cameras.
  • One network cable for each outdoor camera.
  • One PoE network switch that has enough power and port to support the number of cameras.

Camera Specification

Wired Yes, with PoE support
Wi-Fi No
Image Resolution 2048x1536, 1920x1080, 1280x720
Video/Audio Recording No, image recording only unless with VSS
Night-Vision Up to 100 feet
Motion Detection Yes
Product Dimensions 7x4x5 inches
Camera Weight 9.9 ounces

(Optional) PoE Switch + 25, 50 or 100-foot Ethernet cable

PoE Switch Ports 1 WAN port and 4 LAN ports
PoE Max Power 40W (can power 4 cameras)
Ethernet Cable 25, 50 and 100 feet with cable clip

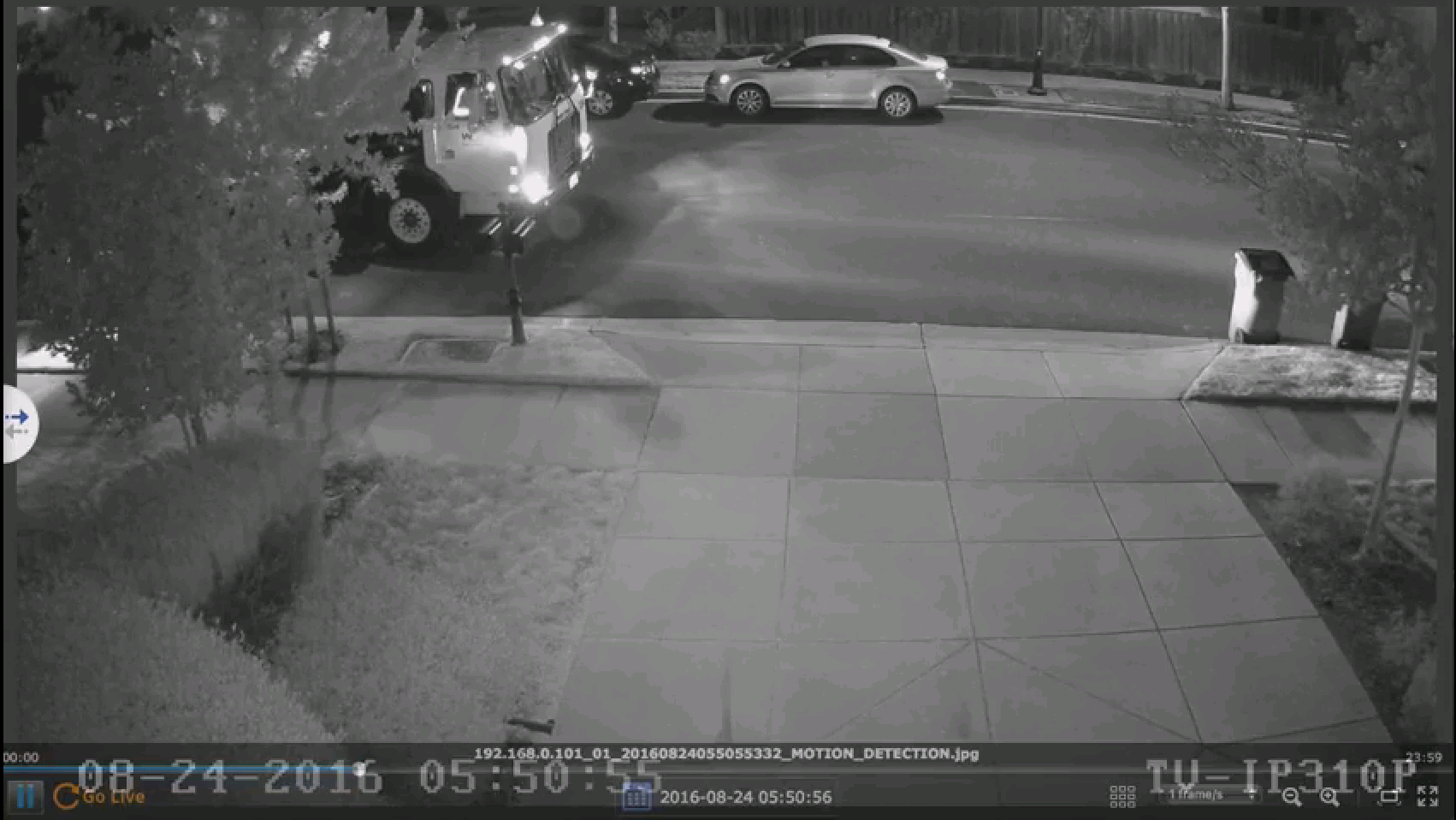

Image Gallery for TRENDnet IP 310PI


... ... ... ...

Video Gallery for TRENDnet IP 310PI


... ...

Plans in red require excessively high upload bandwidth; plans in orange require high upload bandwidth.

Supported Image Recording Service Plans

Plan ID
Plan Details
Monthly
Price
Yearly
Price
Bandwidth
Requirement
P1 2048x1536, 1 image/3s, motion $13.13 131.30 1.3Mbps
P2 2048x1536, 1 image/6s, motion $8.11 $81.10 647Kbps
P3 2048x1536, 1 image/30s, motion $4.61 $46.10 194Kbps
P4 2048x1536, 1 image/3s, continuous $26.27 $262.70 1.3Mbps
P5 2048x1536, 1 image/6s, continuous $16.22 $162.20 647Kbps
P6 2048x1536, 1 image/30s, continuous $9.21 $92.10 194Kbps
P7 1920x1080, 1 image/3s, motion $9.49 $94.90 853Kbps
P8 1920x1080, 1 image/6s, motion $6.46 $6.46 427Kbps
P9 1920x1080, 1 image/30s, motion $3.12 $31.20 128Kbps
Plan ID
Plan Details
Monthly
Price
Yearly
Price
Bandwidth
Requirement
P10 1920x1080, 1 image/3s, continuous $9.49 $94.90 853Kbps
P11 1920x1080, 1 image/6s, continuous $6.46 $6.46 427Kbps
P12 1920x1080, 1 image/30s, continuous $3.12 $31.20 128Kbps
P13 1280x720, 1 image/3s, motion $7.49 $74.90 560Kbps
P14 1280x720, 1 image/2s, motion $9.40 $94.00 840Kbps
P15 1280x720, 1 image/s, motion $16.34 $14.98 1.6Mbps
P16 1280x720, 1 image/3s, continuous $14.98 $149.80 560Kbps
P17 1280x720, 1 image/2s, continuous $18.80 $188.00 840Kbps
P18 1280x720, 1 image/s, continuous $32.69 $326.90 1.6Mbps

Order preconfigured devices and a supported plan

Pre-configured TRENDnet TV-IP310PI Ultra HD 3MP network camera

$179.99

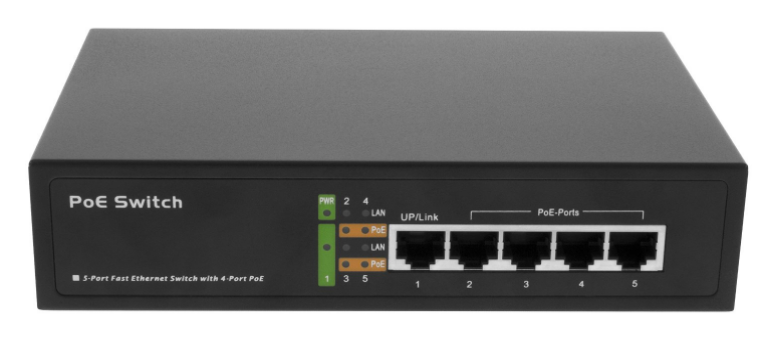

Optional 4-port PoE switch (support 4 PoE cameras)

$59.99

Optional 25-foot network cable

$12.99

Optional 50-foot network cable

$18.99

Optional 100-foot network cable

$26.99

Select a service plan


Pay annually to save 2 months

Cost

  • Hardware cost:
  • Tax, shipping & handling:
  • Recurring service fee:
  • Total cost:
Discontinued. You can order cameras from any vendor and configure them with CameraFTP.

The above plans are for 7-day retention. You can order a Custom Plan with longer retention days by
filling out and sending the complete Order Form
